Mobile X-ray machine is an essential equipment for Nondestructive Testing works. It applies with components made of metal&nonmetal material, casting and welding parts for suring appearance of inner failure, slag inclusion, crack, air hole and bad welding(not penetrate completely). It is widely used in industrial such as mechanical, chemical, ship-building, high-tension vessel, national defense, technical researching, automobile, aviation, heat-resistance material and so on. This type of X-ray machine not only have complete functions, but also have advantages like high automatic ability, reliable performance, simple operation, fast inspection speed and convenient maintenance. It can works matches with X-ray computer real time radiography system and X-ray TV displaying system which has high automatic capability and accurate inspection speed.
|
Model |
Max rated voltage(KV) |
Max rated current(mA) |
Max penetrationA3(mm) |
Focal size(mm) |
Tube from |
|
XYD-1520/4 |
150 |
20 / 4 |
25/(18) |
3.0¡Á3.0/1.0¡Á1.0 |
Chinese/import |
|
XYD-1610/4 |
160 |
10 / 4 |
28(20) |
3.0¡Á3.0/1.0¡Á1.0 |
Import |
|
XYD-22510/3 |
225 |
10 / 3 |
43(33) |
3.0¡Á3.0/1.0¡Á1.0 |
Import |
|
XYD-3010/3 |
300 |
10 / 2 |
71(50) |
3.6¡Á3.6/1.9¡Á1.9 |
Import |
|
XYD-3510/3 |
350 |
10 / 3 |
80(56) |
3.6¡Á3.6/1.9¡Á1.9 |
Import |
|
XYD-4010/3 |
400 |
10 / 3 |
97(70) |
5.5¡Á5.5/2.5¡Á2.5 |
Import |
|
XYD-4510/3 |
450 |
10 / 2 |
105(80) |
5.5¡Á5.5/2.5¡Á2.5 |
Import |

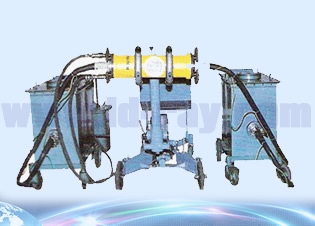

22510Mobile X-ray machine |

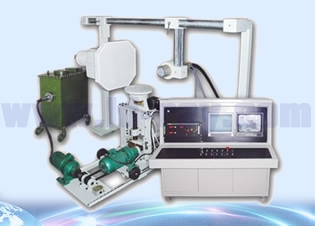

3010¡¢3510Mobile X-ray machine |

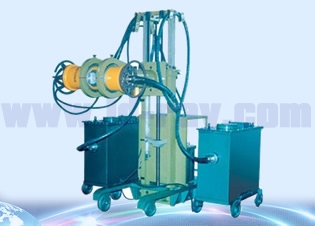

4010¡¢4510Mobile X-ray machine |
|
Remarks: Focal size in above table is under EN12543 standard, values in parenthesis expresses penetration thickness when matches with industrial TV. |
